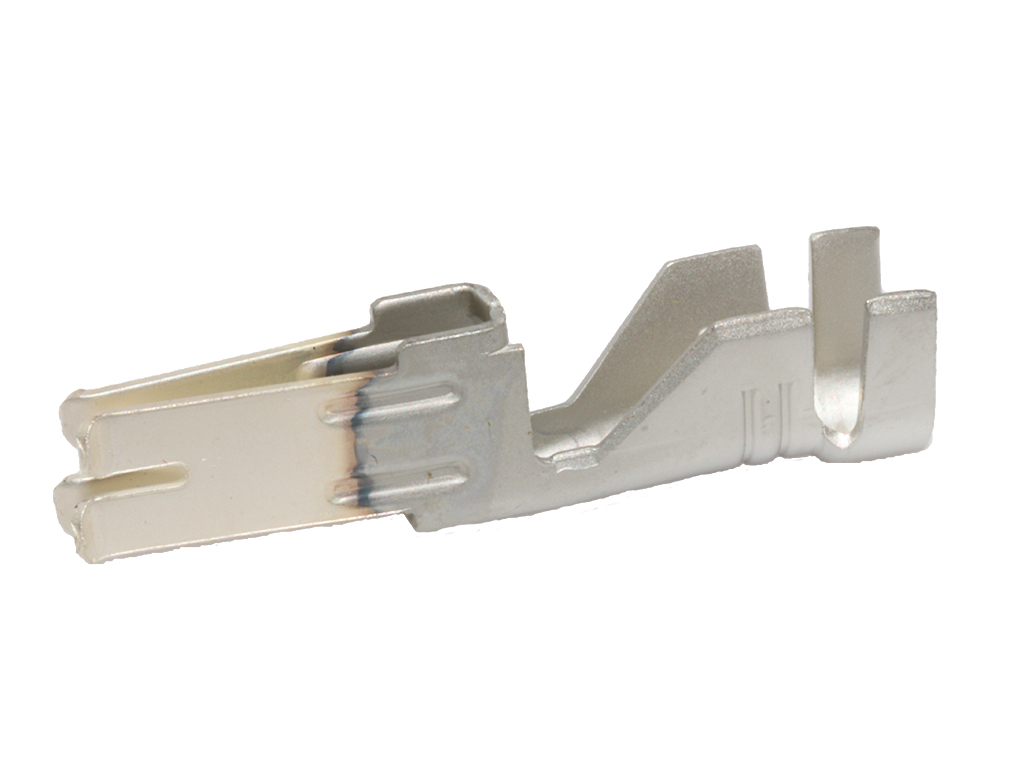

| 类别 | 压接端子 | Lead-freeProcess Capability | N/A |
|---|---|---|---|
| Net Weight | 1.381/g | UPC | 889056241779 |
| 包装形式 | 卷状 | 部件属性 | 母端 |
| 材料-接合处电镀 | 镍基覆银 | 材料-金属 | 高性能合金(HPA) |
| 材料-终端电镀 | Tin over Nickel | 产品规格 | PS-42815-001 |
| 产品名称 | Mini-Fit Sr. | 导线绝缘直径 | 4.57mm max. |
| 概述 | Mini-Fit Sr. Power Connectors | 最小镀层端接 | 2.540µm |
| 每触点最大电流 | 50.0A | 系列 | 42815 |
| 线径规格 AWG | 14, 16 | 线缆尺寸mm² | N/A |
| 销售用图纸 | SD-42815-020-001 | 应用 | Power, 线对板, 线对线 |
| 终端界面类型 | 压接或压缩 | 注解 | High Current/Low ForceSee Product Specification for maximum current rating by circuit size and application., High Current/Low ForceSee Product Specification for maximum current rating by circuit size and application. |
| 状态 | Active | 总览 | Mini-Fit Sr. Power Connectors |
| 最薄镀层 - 接合部位 | 2.540µm | ||
