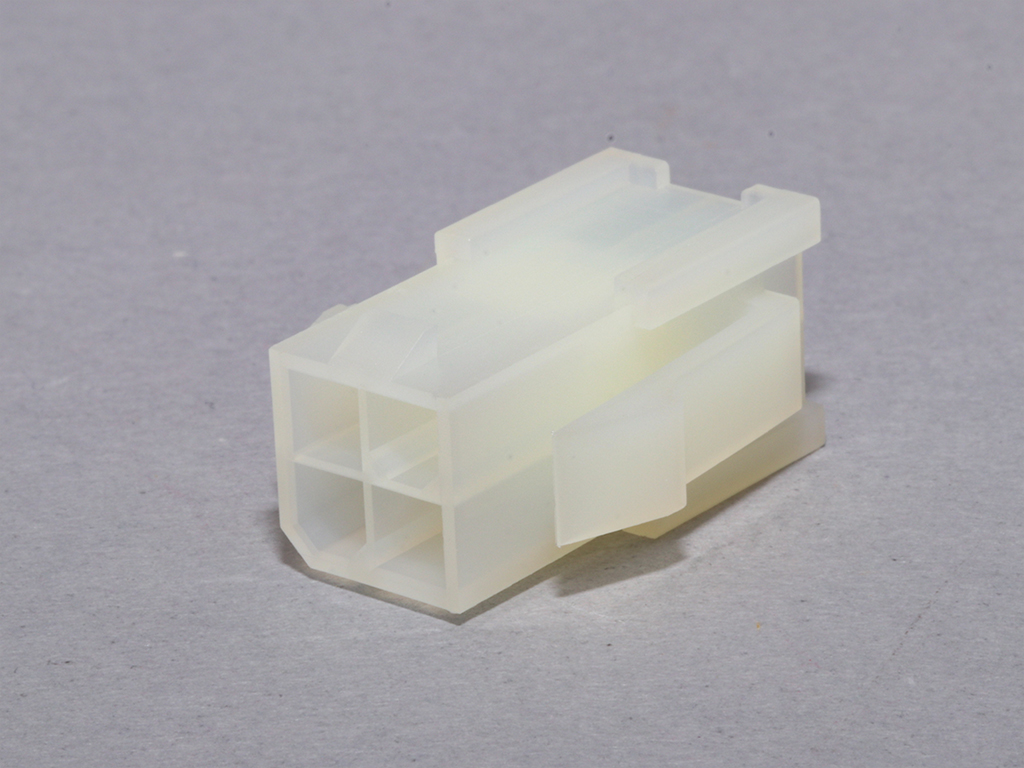

| 包装规格 | PK-5559-001-001 | 概述 | Mini-Fit Jr. Power Connectors |
|---|---|---|---|
| 断开 | 否 | 电路数(最多的） | 4 |
| 产品名称 | Mini-Fit Jr. | 产品规格 | PS-45750-001-001, PS-5556-001-001 |
| 材料-树脂 | 尼龙 | 部件属性 | 插头 |
| 包装形式 | 袋 | 行数 | 2 |
| UPC | 800753584303 | UL | E29179 |
| Net Weight | 1.744/g | Lead-freeProcess Capability | N/A |
| Glow-Wire Capable | 否 | engineeringoldPN | 5559-04P |
| Engineering Number | 5559-04P | CSA | LR19980 |
| 销售用图纸 | SD-5559-NP-000 | 总览 | Mini-Fit Jr. Power Connectors |
| 状态 | Active | 注解 | Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information., Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information. |
| 运行温度范围 | -40° to +105°C | 有极性的插配件 | 是 |
| 应用规范 | AS-5557-001-001 | 应用 | Power, 线对板, 线对线 |
| 颜色-树脂 | 自然色 | 阻燃性 | 94V-2 |
| 系列 | 5559 | 面板安装式 | 是 |
| 每触点最大电流 | 13.0A | 类别 | 压接外壳 |
| 可堆叠的 | 否 | 间距-接合界面 | 4.20mm |
| 间距-终端界面 | 4.20mm | ||
