| UL | E29179 | 电路数(最多的） | 10 |
|---|---|---|---|
| 电路数(已装入的) | 10 | 穿孔式表面焊接(SMC) | 是 |

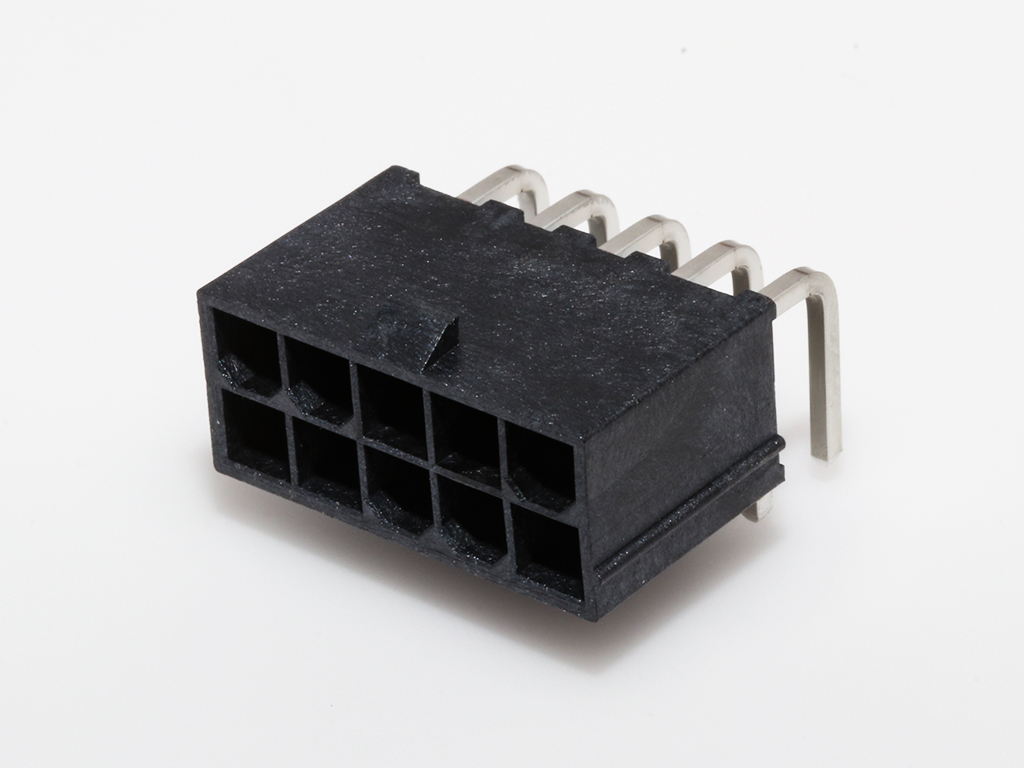

| 产品名称 | Mini-Fit Jr. | 产品规格 | PS-5556-001-001 |
| 材料-终端电镀 | Matte Tin | 材料-树脂 | 高温热塑型塑料 |
| 材料-金属 | 黄铜 | 材料-接合处电镀 | Matte Tin |
| 包装形式 | 盘状 | 包装规格 | PK-5569-003 |
| UPC | 883906760038 | 电压 -最大 | 600V AC (RMS)/DC |
| Process Temperature max. C | 260 | PC厚度 推荐 | 1.78mm |
| PCB 极性 | 是 | PCB 焊脚长度 | 3.30mm |
| PCB 定位器 | 是 | PCB 保持力 | 是 |
| Net Weight | 4.196/g | Max. Cycles at Max. Process Temperature | 1 |
| Lead-freeProcess Capability | SMC&WAVE | Glow-Wire Capable | 是 |
| Duration at Max. Process Temperature (seconds) | 30 | CSA | LR19980 |
| 锁定插接部位 | 是 | 总览 | Mini-Fit Jr. Power Connectors |
| 状态 | Active | 注解 | Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex product specification PS-45750-001 for additional current de-rating information.This Molex product is manufactured from material that has the following ratings, tested by independent agencies : a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety; section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options., Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex product specification PS-45750-001 for additional current de-rating information.This Molex product is manufactured from material that has the following ratings, tested by independent agencies : a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety; section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options. |
| 终端界面类型 | 穿孔式 | 运行温度范围 | -40° to +105°C |
| 有极性的插配件 | 是 | 有护墙的 | 全部 |
| 应用 | 板对板, Power, 线对板 | 颜色-树脂 | 黑色 |
| 销售用图纸 | SD-46991-001-000 | 先接后断 | 否 |
| 系列 | 46991 | 阻燃性 | 94V-0 |
| 耐用性(插拔次数) - 最多次数 | 75 | 每触点最大电流 | 13.0A |
| 类别 | PCB插座头 | 可配插产品指南 | 否 |
| 可堆叠的 | 否 | 间距-接合界面 | 4.20mm |
| 间距-终端界面 | 4.20mm | 行数 | 2 |
| 概述 | Mini-Fit Jr. Power Connectors | 方向 | 直角 |
| 断开 | 否 | ||
